SATURN NAVIEN LCB700 21RS Blue Flame Low NOx OIL CONDENSING UNIT

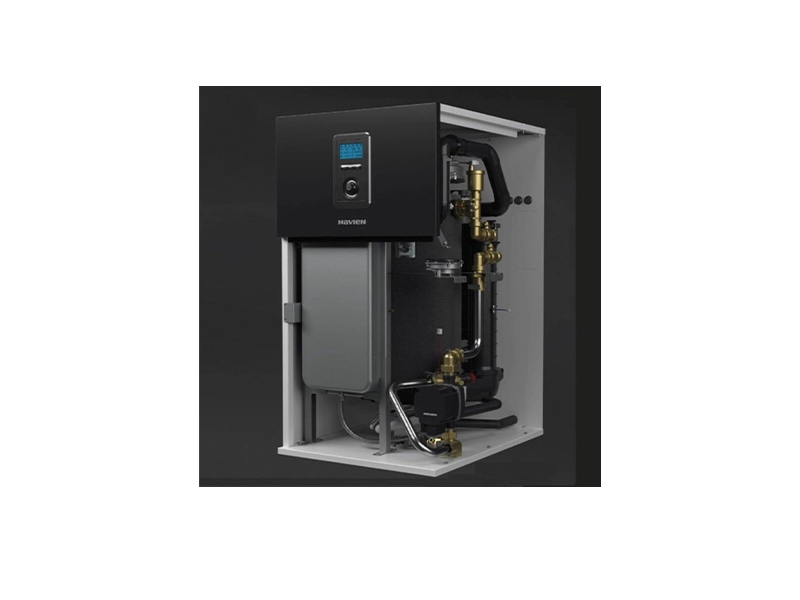

Saturn Navien LCB700 21RS Blue Flame Low NOx Oil Condensing Boiler

New series of condensing oil boilers LCB700 by KDNavien – Saturn Korea. After the successful presence of Saturn machines in the Greek market for the last 25 years and in combination with the modern energy requirements of the European Regulations 811/2013 Ecodesign and 813/2013 Ecolable, KDNavien offers you the top heating and hot water solution with the LCB700 series RS (Regular), LCB700 LS (System) and LCB700 LC (Combi).

The new LCB700 ERP Low NOx series, with a Blue Flame burner, outperforms the competition’s Yellow Flame burners. With Navien’s revolutionary Blue Flame technology, optimal performance (93% efficiency) in NOx pollutants of 57mg/kWh is achieved.

TECHNICAL CHARACTERISTICS SATURN Navien LCB700 21RS

• Top seasonal efficiency rating of 93% energy class A according to ErP

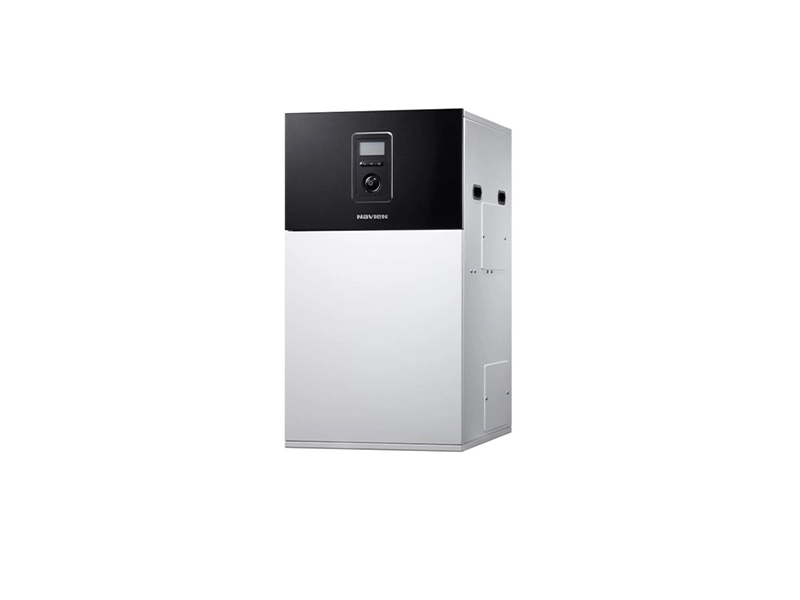

• Compact dimensions of only 470 x 600 x 860 for the LCB700 Regular 21kW model
• BLDC technology fan inverter with up to 60% less noise and low power consumption
• Air Pressure Sensor (APS) technology with chimney capability Φ60/100 up to 20m and Φ80 up to 110m
• Grundfos UPM3 circulator inverter and 12 liter expansion tank for System models
• Weight 67kg
