From the very beginning we designed a solar water heater – the CALPAK MARK 4 – that best meets the most important requirement: high efficiency and therefore great economy. We thought differently and dared to innovate with the confidence of our many years of experience. We have stubbornly preserved the traditional values of our products for robustness and durability because we know that only then does it make sense to invest in a solar system. We have used cutting edge technology, the best quality materials and the incredible production capabilities of our new factory. But most of all, we used the passion of our people to create a product that makes us truly proud.
FEATURES | COLLECTOR |
Total/active surface area (m2) | 2.13/1.9 |
Absorber | High selective (TiNOX) with copper hydroskeleton |
Welding absorber | Ultrasonic |
Absorbency | a>95% |
Thermal emission | e<3.5% |
Context | Anodised double-walled aluminium |
Jamming glass | Tempered 3.2mm safety, Low-iron with permeability >91.5% |
Certifications | Solar-Keymark, SRCC, DCL |
FEATURES | water tank |
Capacity (Lit) | 155.9 |
Internal tank design | From Interdomo GERMANY |
Technological superiority | Large lid depth and internal seams for perfect plating |
Tank/jacket material | Steel DC-03 2.5mm / Steel DC-03 1.5mm DIN10130 |
Welding method | Robotics |
Welding control | Double check, before and after plating at 15bar |
Anti-corrosion protection | Direct enameling (by DIN4753/3) |
Certifications | Email (enamel quality), ROHS (sanitary), CE |
Base | Made entirely of aluminium |
CALPAK MARK4 160/2.6 | |

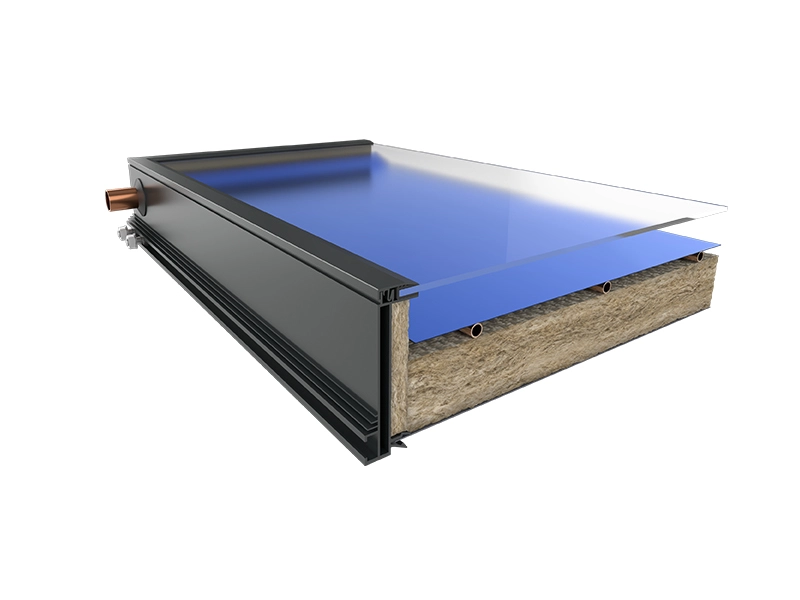

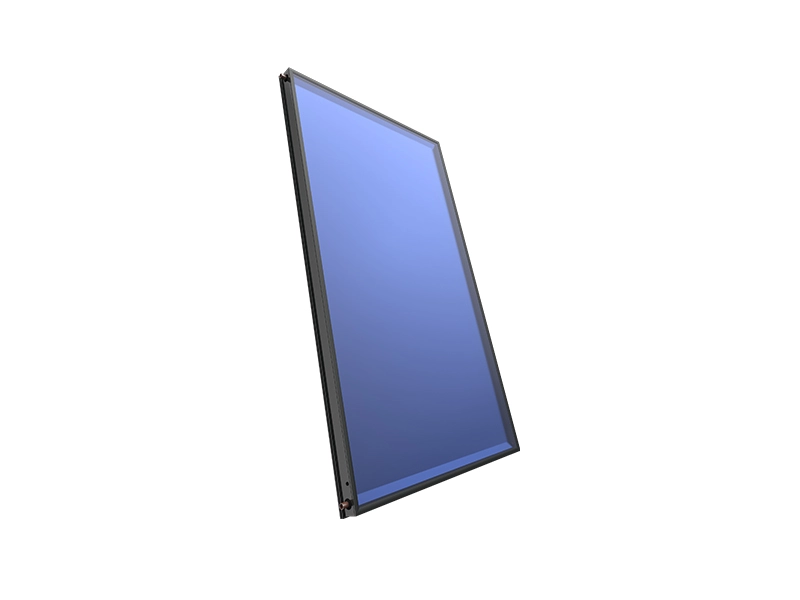

COLLECTOR | |
Active surface (m2) | 2.64/2.44 |
Absorber | High selective (TiNOX) with copper hydroskeleton |
Absorber welding | Ultrasonic |
Absorbency | a>95% |
Thermal emission | e<5% |
Context | Anodised double-walled aluminium |
Insulation | Rockwool |
Glass | Tempered 3.2mm safety, Low-iron with permeability >91.5% |
Efficiency | 81% (according to TUV Rheinland tests) |
Certifications | Solar-Keymark, SRCC |

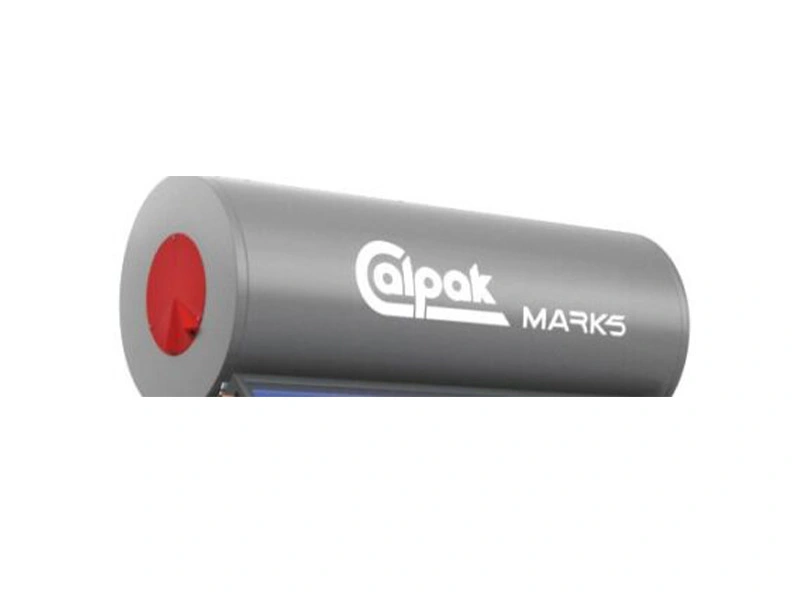

Tank | |
Capacity (Lit) | 155.9 |
Internal tank design | By Interdomo GERMANY |
Technological superiority | Large lid depth and internal seams for perfect plating |
Tank/jacket material | Steel DC-03 2.5mm / Steel DC-03 1.5mm DIN10130 |
Welding method | Robotics |
Welding control | Double check, before and after plating at 15bar |
Anti-corrosion protection | Direct enameling (by DIN4753/3) |
Methodical protection | Magnesium rod (according to DIN4753/3) |
Antifreeze protection | Antifreeze ^ anticorrosive liquid Calpak Nox (propylene glycol) |
Insulation | Expanded ecological polyurethane (43Kg/m3) 45mm thick |
Included accessories | Resistance 3.5kW INOX, non-return valve (b. type), locking device |
Certifications | Email (enamel quality), ROHS (sanitary) |
Tank connection set | Multilayer pipe F20 and Isopipe insulation |
Connection to boiler | Only the triple energy models (Trien) |
Base | Made entirely of aluminium |
